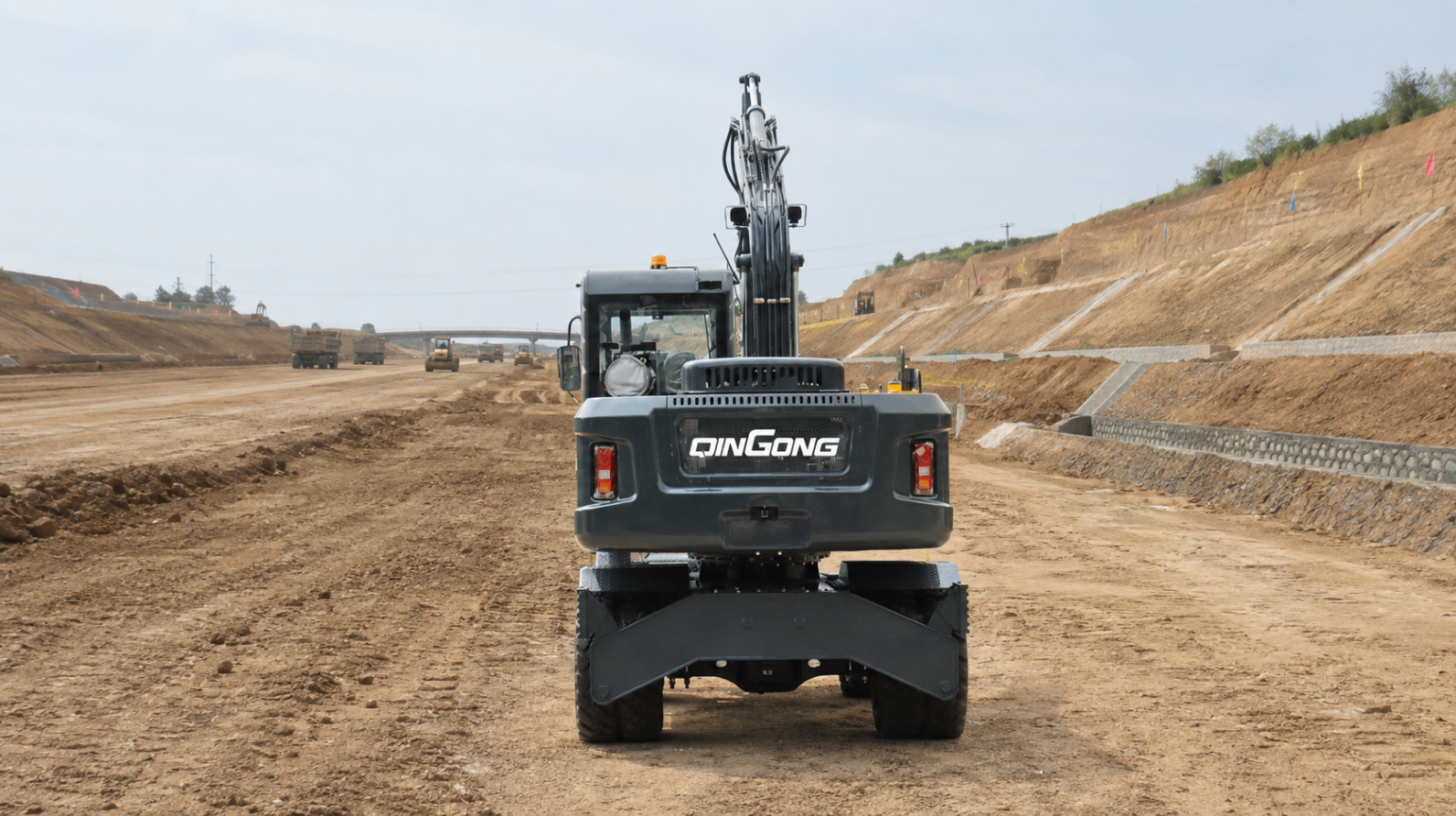

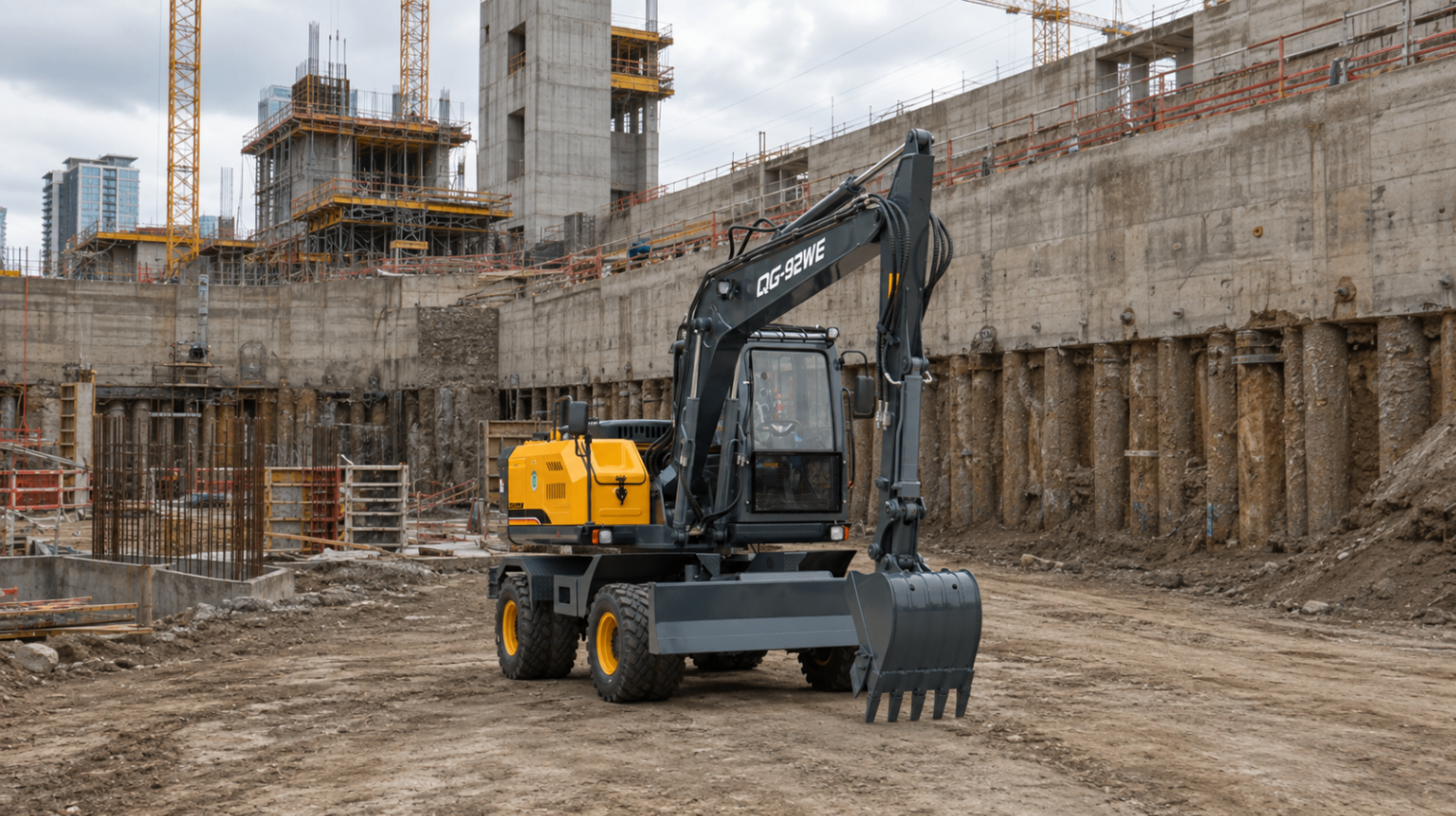

QINGONG QG-92WE WHEEL EXCAVATOR
Engine Type: Yuchai YC4FA85-T300 62.5kW/2200rpm
Overall Weight:9200kg
Grabbing Weight:2200kg
Shipping Length:6800mm
Total Height During Transportation:2890mm
Overall Width:2200mm
Tail Turning Radius:2020mm
The Distance Between the Tires:1700mm
Wheelbase:2380mm
Boom Length:4100mm
Stick Length:2400mm
Maximum Grabbing Height:8100mm
Maximum Unloading Height:6300mm
Maximum Working Range:7700mm
Minimum Turning Radius:2020mm
Maximum Radius Grabbing Weight:2200kg
The Gripper has a Maximum Opening Width:1450mm
The Grabber Can Rotate at Different Angles:360°
Rotation Speed:11-12r/min
Travel Speed:35km/h
Shift Mode:Mechanical 5-speed manual
Number of Gears (Forward/Backward):5/1
