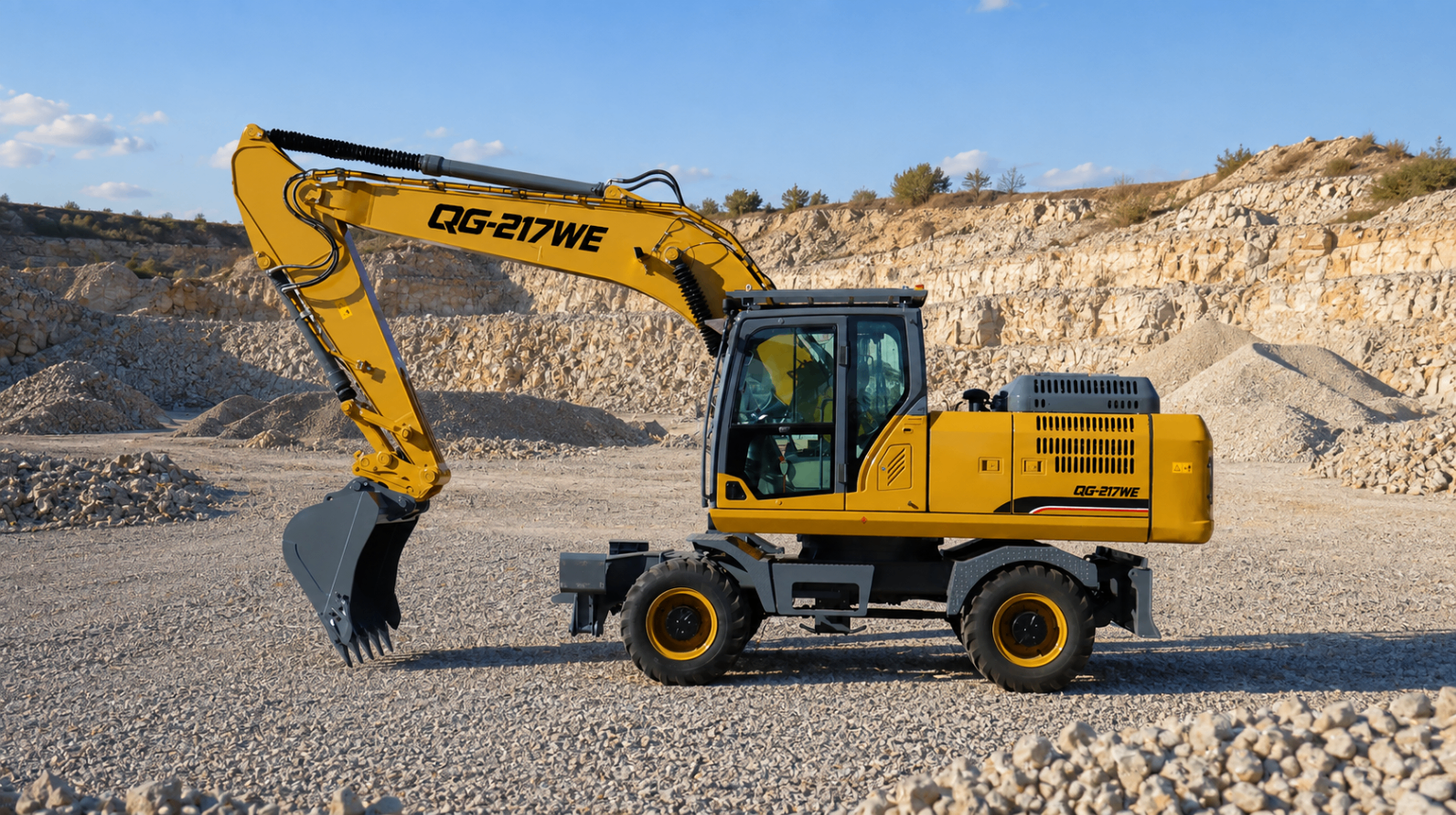

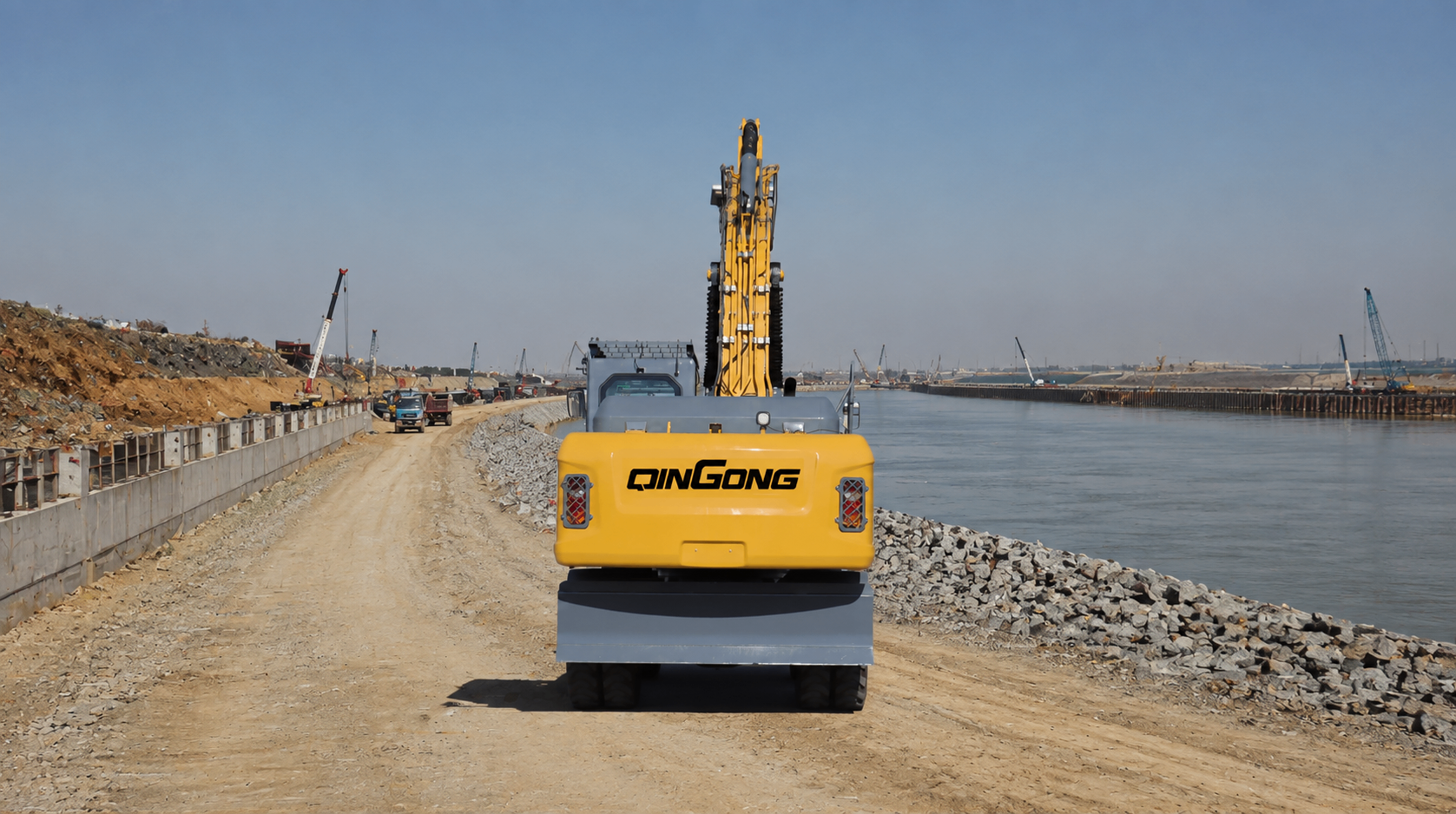

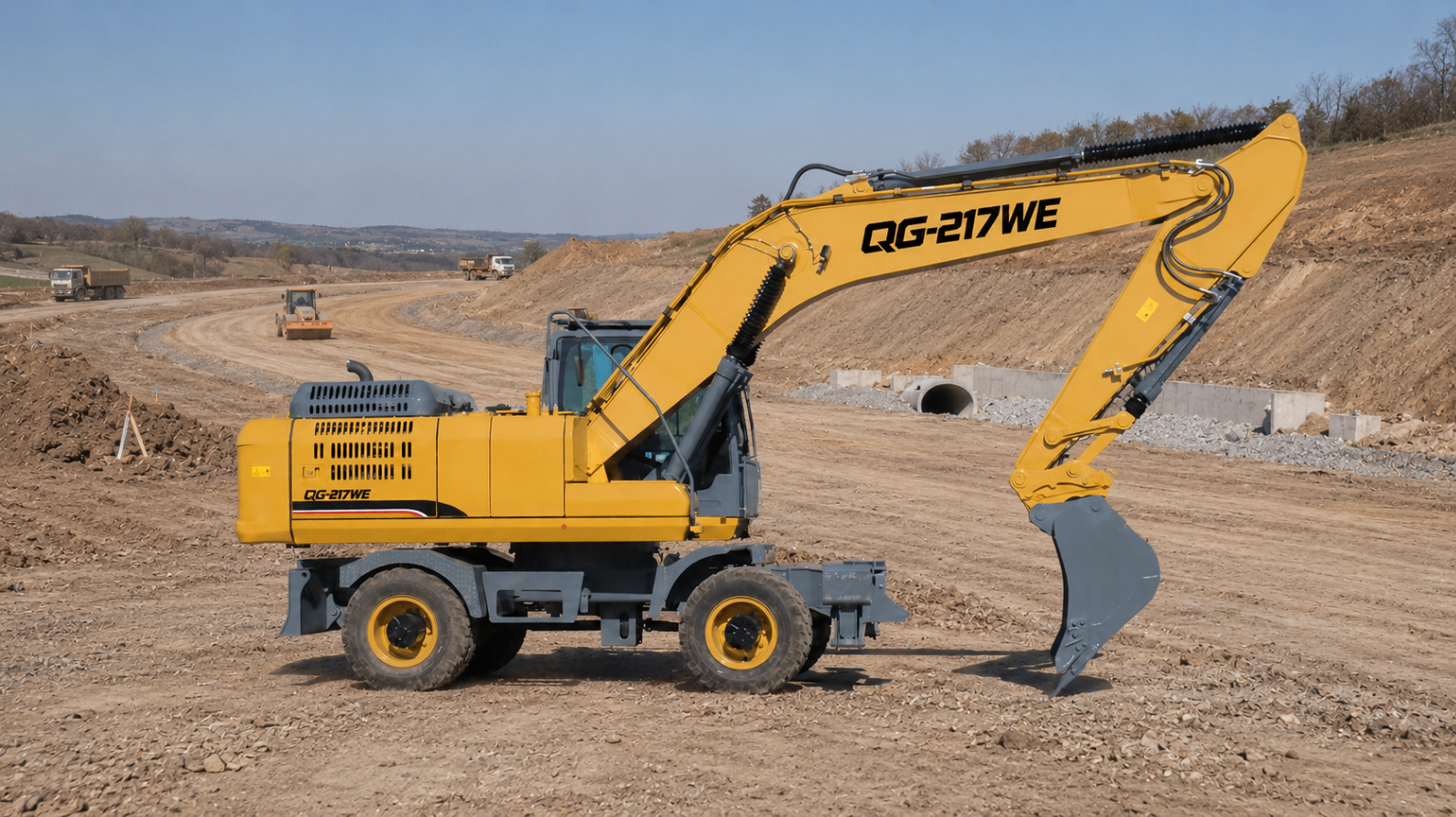

QINGONG QG-217WE WHEEL EXCAVATOR
Engine: Cummins 6BTA5.9-C180-II, 132 kW/2200 rpm
Overall Weight: 21680 kg
Bucket Capacity: 1.0 m³
[Technical Specification]
Shipping Length: 9675 mm
Total Height During Transportation: 3210 mm
Overall Width: 2560 mm
Tail Turning Radius: 2945 mm
Wheelbase: 2855 mm
Distance Between the Tires: 1900 mm
Boom Length: 5700 mm
Stick Length: 2900 mm
Fuel Tank Capacity: 350 L
Hydraulic Tank Capacity: 215 L
[Working Range and Digging Force]
Maximum Digging Radius: 9895 mm
Maximum Digging Height: 10000 mm
Maximum Digging Depth: 6437 mm
Maximum Unloading Height: 7000 mm
Bucket Digging Force: 152.1 kN
Stick Digging Force: 119.5 kN
Bucket Capacity: 1.0 m³
Hydraulic System Flow: 2 x 239 L/min
Gradeability: ≥60%
Travel Speed: 35 km/h
