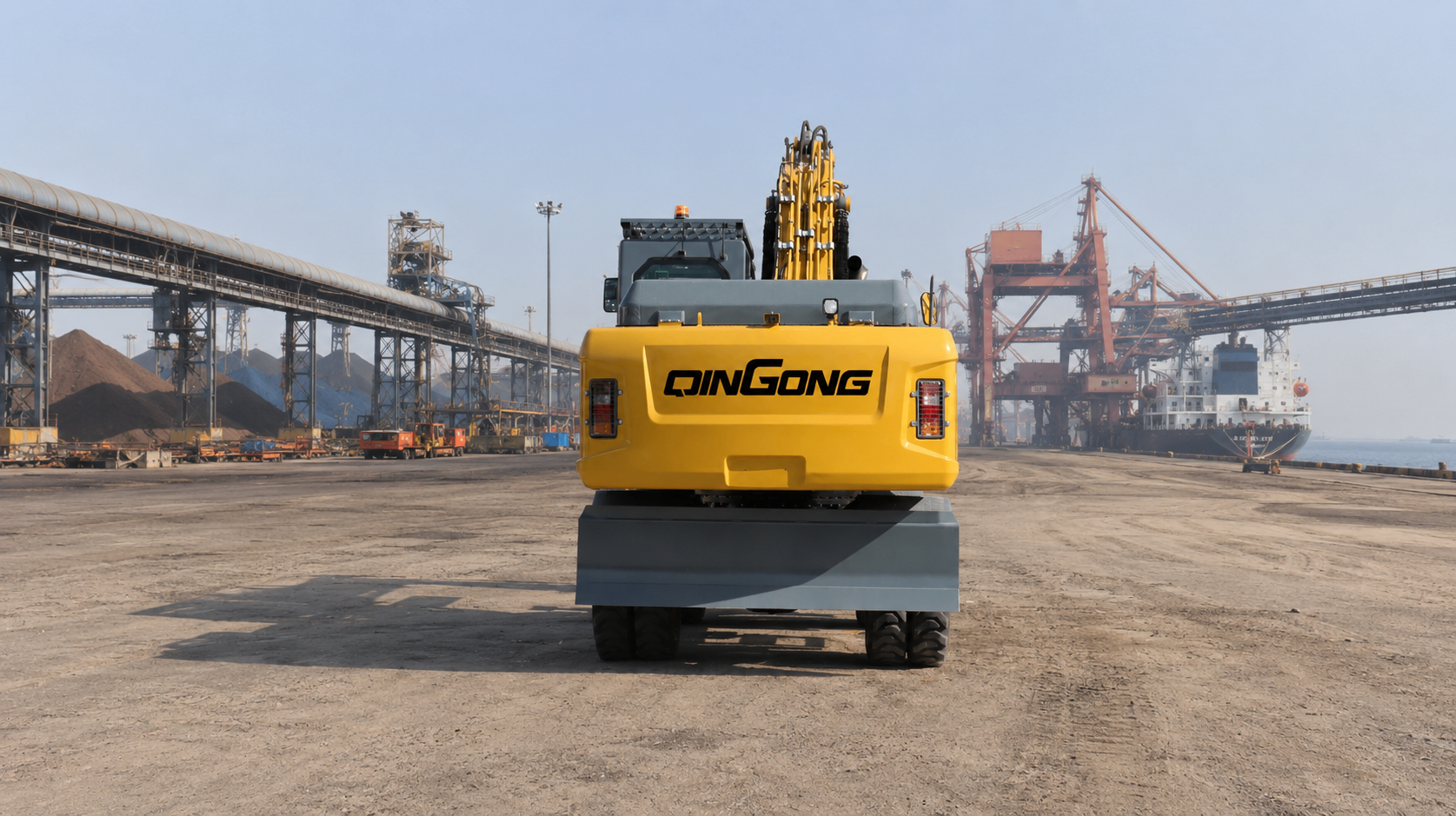

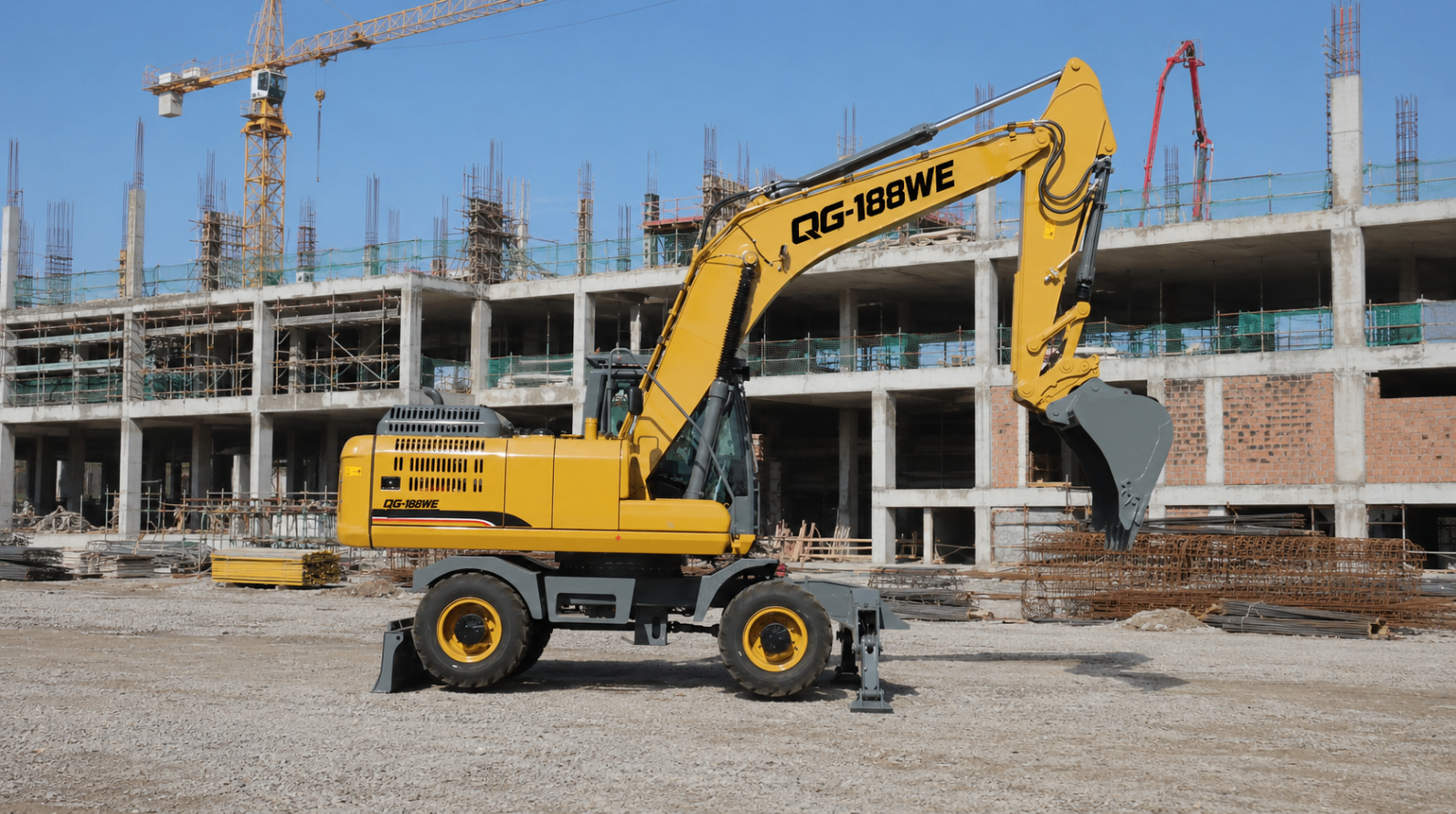

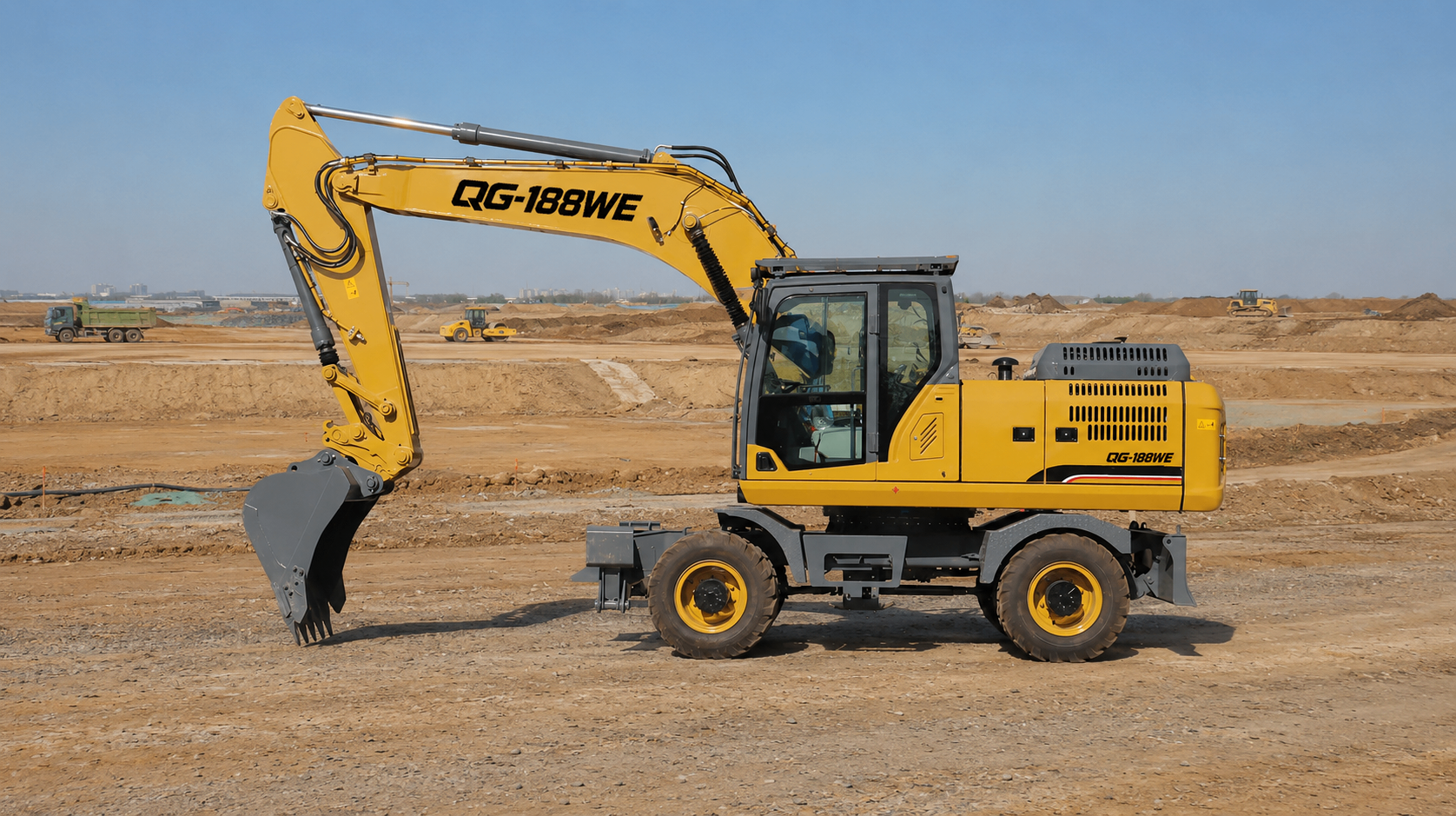

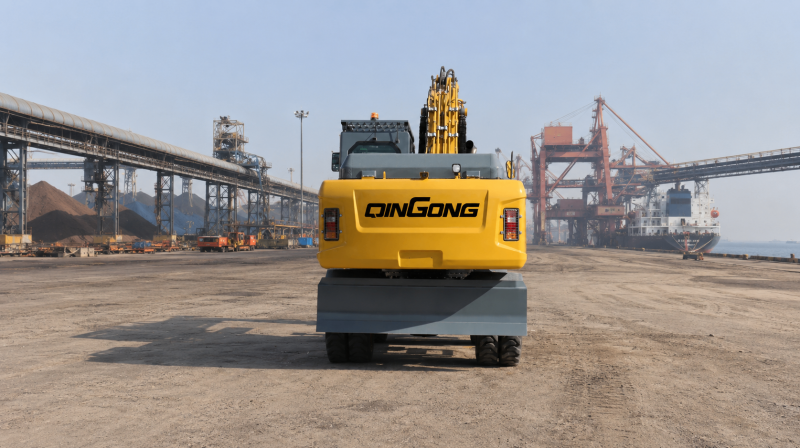

QINGONG QG-188WE WHEEL EXCAVATOR
Engine: Cummins 6BTA5.9-C180-II, 132 kW/2200 rpm
Overall Weight: 18800 kg
Bucket Capacity: 1.0 m³
[Technical Specification]
Shipping Length: 9200 mm
Total Height During Transportation: 3300 mm
Overall Width: 2490 mm
Tail Turning Radius: 2750 mm
Turntable Width: 2500 mm
Wheelbase: 2850 mm
Distance Between the Tires: 1975 mm
Boom Length: 5200 mm
Stick Length: 2600 mm
[Working Range and Digging Force]
Maximum Digging Radius: 9100 mm
Maximum Digging Height: 9800 mm
Maximum Digging Depth: 5700 mm
Maximum Unloading Height: 6700 mm
Bucket Digging Force: 142 kN
Stick Digging Force: 110 kN
Bucket Capacity: 1.0 m³
Gradeability: ≥60%
Rotation Speed: 11-12 r/min
Travel Speed: 35 km/h
