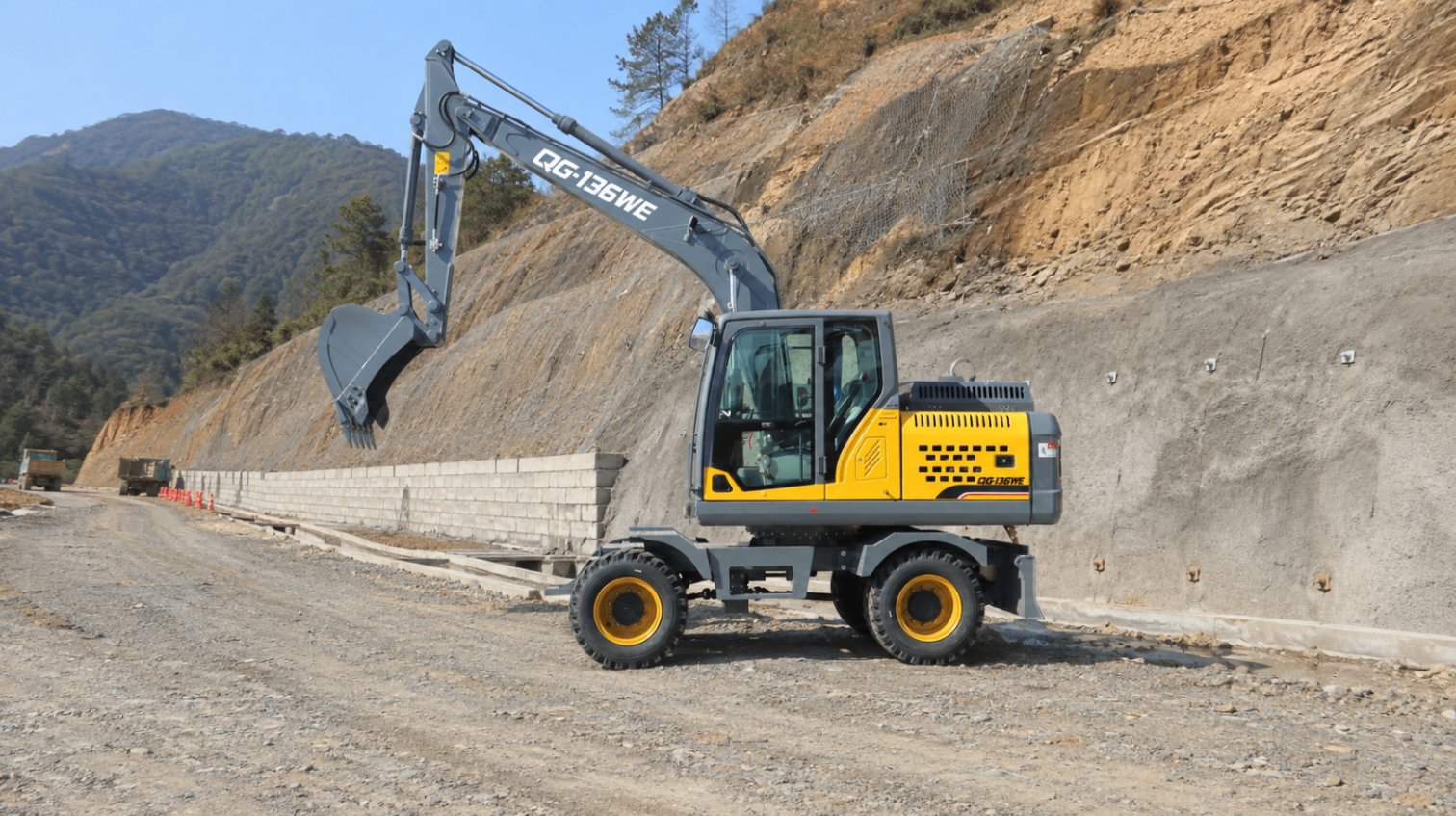

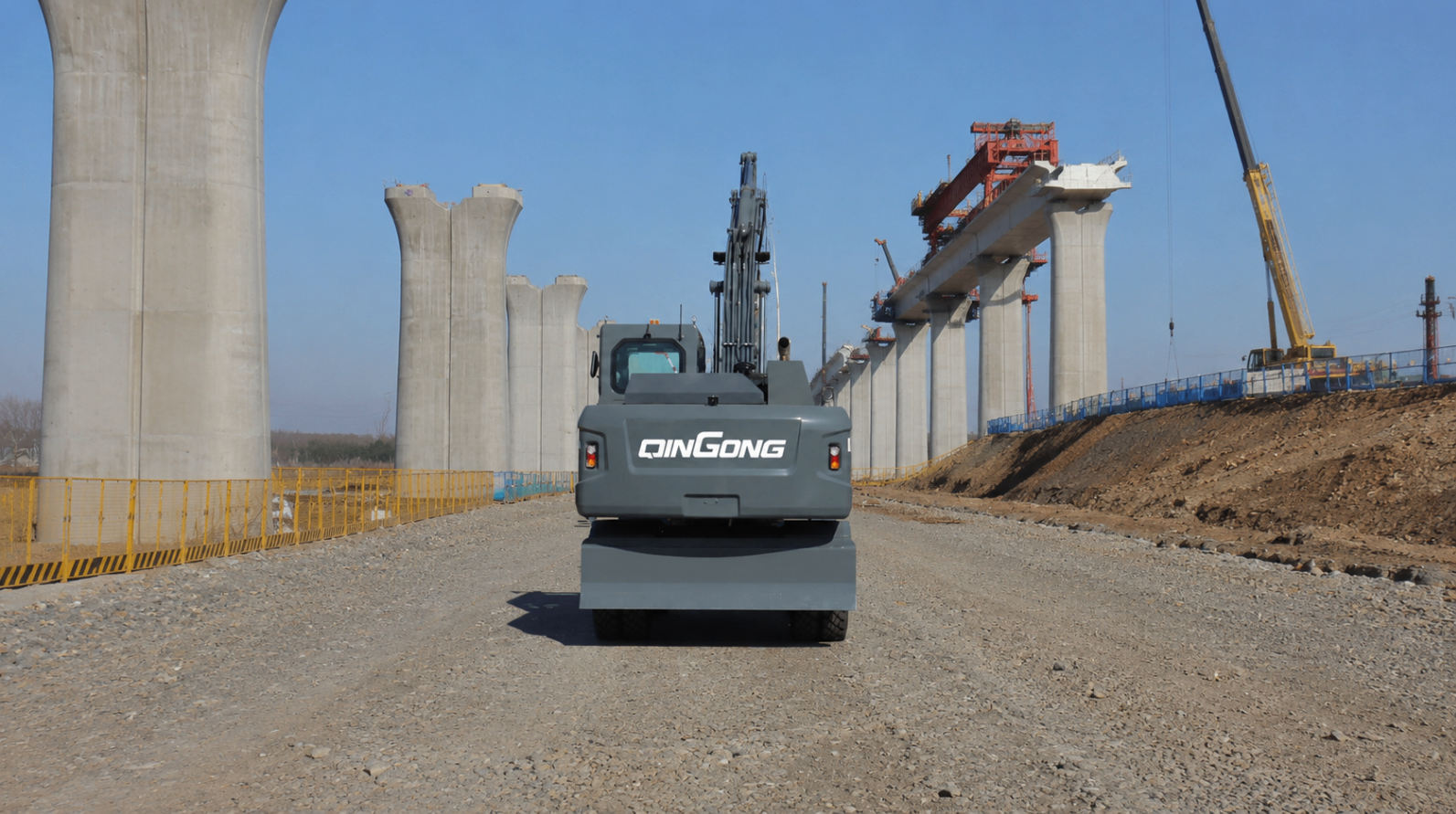

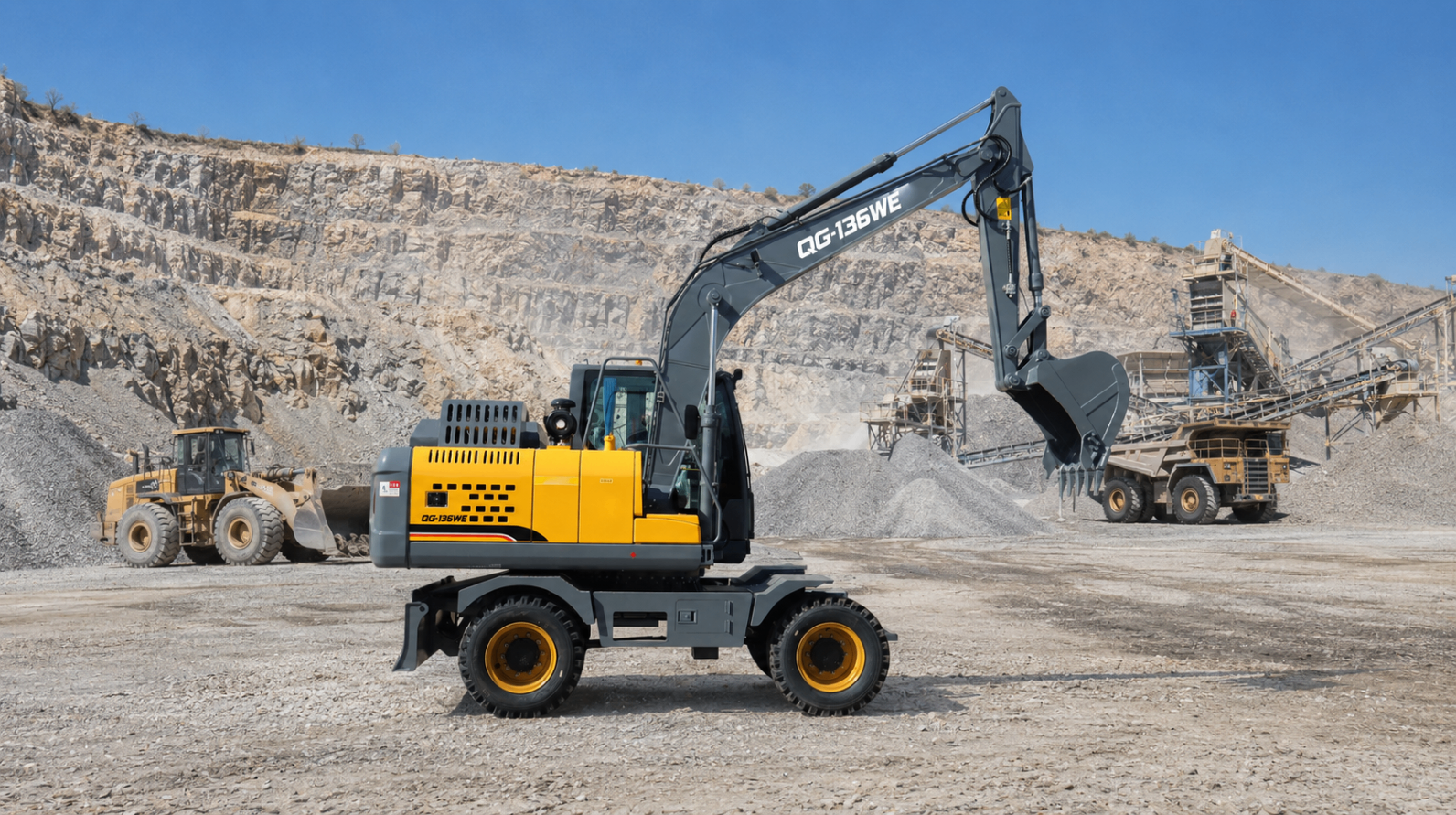

QINGONG QG-136WE WHEEL EXCAVATOR
Engine : Cummins QSB3.9-C125, 93 kW/2200 rpm
Overall Weight: 13600 kg
Bucket Capacity: 0.6 m³
[Technical Specification]
Shipping Length: 7700 mm
Total Height During Transportation: 3255 mm
Overall Width: 2570 mm
Tail Turning Radius: 2395 mm
Turntable Width: 2500 mm
Distance Between the Tires: 1890 mm
Wheelbase: 2580 mm
Boom Length: 4600 mm
Stick Length: 2200 mm
[Working Range and Digging Force]
Maximum Digging Radius: 8020 mm
Maximum Digging Height: 8760 mm
Maximum Digging Depth: 4865 mm
Maximum Unloading Height: 6220 mm
Bucket Digging Force: 85 kN
Stick Digging Force: 53 kN
Bucket Capacity: 0.6 m³
Gradeability: ≥60%
Rotation Speed: 11-12 r/min
Travel Speed: 35 km/h
